Semi Tsis Siv Neeg Silk Screen Printing Tshuab
TPM, lub tuam txhab ua lag luam nyob hauv Suav teb, tshwj xeeb hauv kev tsim cov tshuab Semi-Automatic Silk Screen Printing Machine. Peb cov kws tshaj lij nthuav dav tshaj li kev tsim khoom, raws li peb ua raws li cov neeg siv khoom tshwj xeeb rau cov lag luam xav tau cov cuab yeej zoo tshaj plaws. Kev khiav hauj lwm los ntawm peb lub koom haum tus kheej, TPM boasts ib tug kev infrastructure, nrog rau ib tug engineering tshawb fawb thiab kev loj hlob center, CNC ua chaw, sib dhos thiab debugging chaw, thiab ib tug mob siab rau kev lag luam thiab tom qab-muag kev pab cuam pab neeg.
Hauj lwm lawm
Lub Tshuab Semi-Automatic Silk Screen Printing Tshuab sawv cev rau cov cuab yeej ua haujlwm zoo tshaj plaws rau kev siv tus cwj mem rau ntau qhov chaw los ntawm cov txheej txheem silk screen printing. Lub tshuab luam ntawv tshiab no amalgamates qhov zoo ntawm phau ntawv tswj nrog automated nta, ua tiav kev sib haum xeeb ntawm kev siv tes ua haujlwm thiab kev ua haujlwm zoo. Nws cov haujlwm semi-automatic automates qee yam ntawm cov txheej txheem luam ntawv, xws li substrate tso thiab ink daim ntawv thov, yog li txo qhov kev cia siab ntawm kev siv tes ua haujlwm thiab ua kom cov txiaj ntsig tsis raug thiab tsis raug.
Feem ntau, lub tshuab no suav nrog lub thav duab ruaj khov, lub txaj luam ntawv, thiab lub tshuab squeegee. Tus neeg teb xov tooj tso lub substrate rau ntawm lub txaj luam ntawv, thaum lub tshuab siv tus nqi txav ntawm lub vijtsam thiab siv tus cwj mem nrog qhov tseeb. Qhov no automation tsis tsuas yog ua kom ceev cov txheej txheem luam ntawv tab sis kuj txo qis qhov tshwm sim ntawm kev ua yuam kev, ua rau nws yog qhov kev xaiv zoo tshaj plaws rau cov lag luam aiming los txhawb cov peev txheej ntau lawm thaum txhawb kev luam ntawv zoo. Renowned rau lawv versatility nyob rau hauv tuav ntau yam ntaub ntawv thiab haum raws li qhov sib txawv prints ntau thiab tsawg, cov cav tov no tau dhau los ua indispensable nyob rau hauv kev lag luam spanning textiles, ntim, electronics, thiab signage.
TPM, lub tuam txhab ua lag luam nyob hauv Suav teb, tshwj xeeb hauv kev tsim cov tshuab Semi-Automatic Silk Screen Printing Machine. Peb cov kws tshaj lij nthuav dav tshaj li kev tsim khoom, raws li peb ua raws li cov neeg siv khoom tshwj xeeb rau cov lag luam xav tau cov cuab yeej zoo tshaj plaws. Kev khiav hauj lwm los ntawm peb lub koom haum tus kheej, TPM boasts ib tug kev infrastructure, nrog rau ib tug engineering tshawb fawb thiab kev loj hlob center, CNC ua chaw, sib dhos thiab debugging chaw, thiab ib tug mob siab rau kev lag luam thiab tom qab-muag kev pab cuam pab neeg.
Ntawm TPM, cov neeg siv khoom txaus siab yog qhov tseem ceeb. Peb muab kev cob qhia dawb thiab kev txhawb nqa rau txhua tus neeg siv khoom, ua tiav los ntawm peb txoj kev cog lus kom xa cov khoom zoo ntawm tus nqi sib tw. Peb lub tuam tsev tshawb fawb thiab kev tsim kho mob siab rau muaj peev xwm ua tau raws li cov qauv tsim tshwj xeeb. Peb muaj kev txaus siab rau kev txiav txim siab luam ntawv daws teeb meem uas ua tau raws li peb cov neeg siv khoom xav tau. Xaiv TPM nrog kev ntseeg siab thiab paub txog peb txoj kev cog lus rau kev ua tau zoo, kev tsim kho tshiab tas mus li, thiab kev pabcuam tsis sib xws.
Peb cov kev pabcuam
1. 2-teev cov lus teb hauv online thaum lub sijhawm ua haujlwm
2. 12- teev cov lus pom zoo
3. Kev kuaj xyuas nruj (100%)
4. Kev ruaj ntseg logistics xa mus
5. Ib xyoos lav thiab kev tu lub neej
6. Tus kheej-tsim technical ntau lawm kab
7. Customization muaj peev xwm
Peb cov khoom

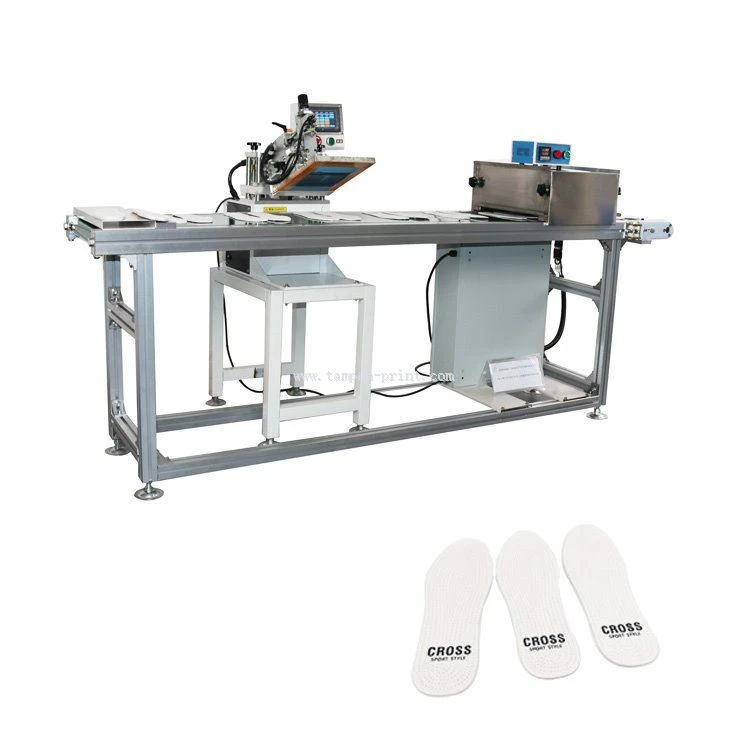

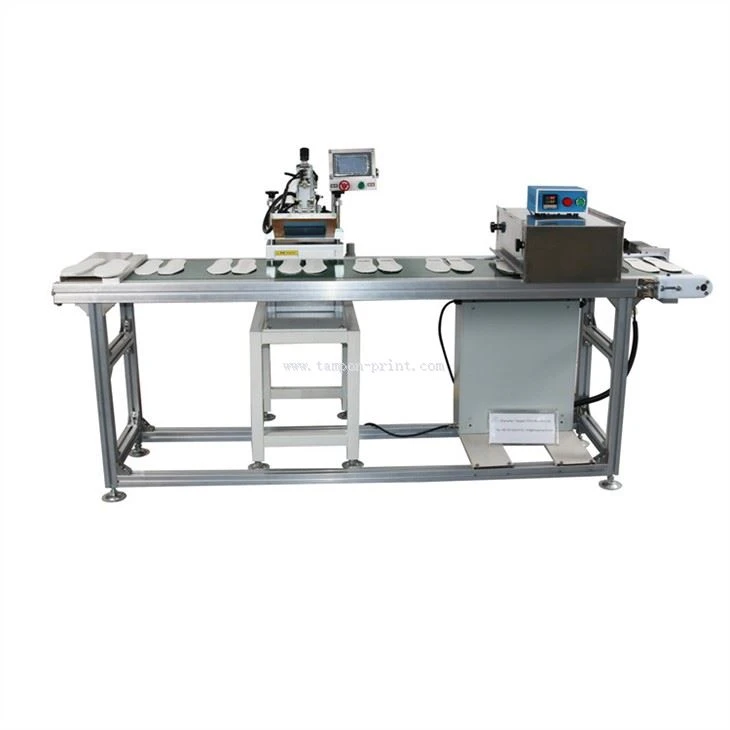

Taw qhia TS-180 semi-automatic screen tshuab luam ntawv, ib qho kev daws teeb meem tshiab rau kev luam ntawv lo lo ntxhuav ntawm ntau yam khoom tiaj tus, suav nrog cov ntsuas ntsuas, insoles, txhuas daim hlau, hnab yas, hnab ntawv, thiab lwm yam. Nruab nrog ib txoj siv conveyor, lub tshuab luam ntawv no txhawb kev luam ntawv ib txhij, tso cai rau kev tsim khoom zoo xws li ib khub ntawm insoles hauv ib lub voj voog.

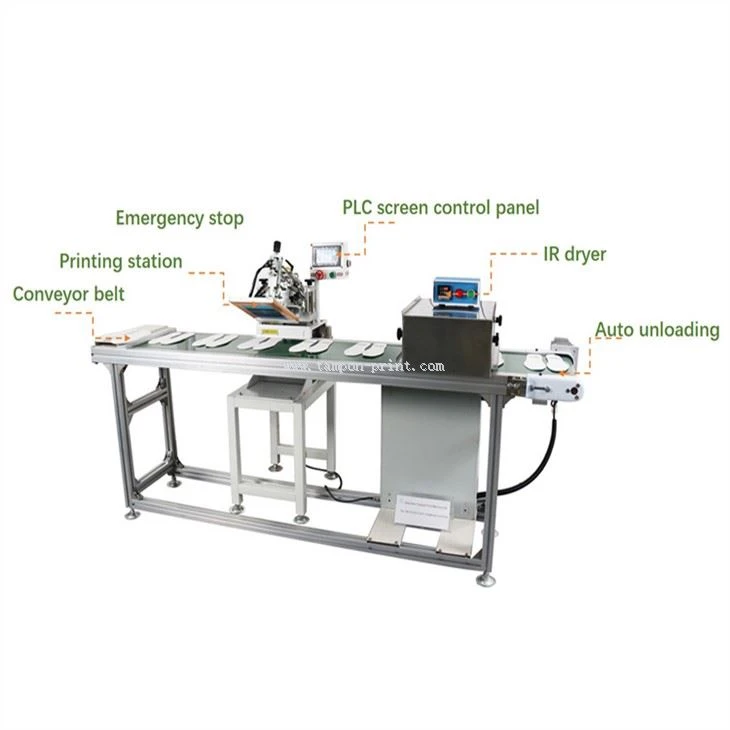

TS-180 muaj rau 6 yam tseem ceeb - nres thaum muaj xwm ceev, chaw nres tsheb luam ntawv, siv conveyor, PLC npo tswj vaj huam sib luag, IR tshuab ziab khaub ncaws, thiab Auto unloading - meticulously tsim los streamline silk screen printing txheej txheem. Txhua yam khoom ua lub luag haujlwm tseem ceeb hauv kev ua kom muaj kev ua haujlwm seamless, los ntawm kev luam ntawv precision mus rau kev tshem tawm kom zoo. Txawm hais tias koj tab tom koom nrog kev tsim khau khau lossis tuav cov khoom sib txawv, TS-180 muaj ntau yam kev daws teeb meem rau txhua yam koj xav tau luam ntawv.
|
Qauv: |
TS -180 |
| Xim luam tawm: | 1 |
| Max. Sau loj: | 120 x 180 mm |
| Loading system: | tsheb |
| Max. Print speed: | 1200pcs / teev |
| Cua siab: | 6bar ua |
| Nominal voltage: | 220V 50Hz |
| Lub zog: | 0.04kW |
| Qhov Loj (L × W × H): | 2000x300x800mm |
| Qhov hnyav: | 180 KGS |
| Conveyor siv loj: | 2000 * 30mm |
Cov yam ntxwv tseem ceeb ntawm TS-180 Semi-Automatic Screen Printing
Cov yam ntxwv tseem ceeb no sib sau ua ke ntawm TS-180 Semi-Automatic Screen Printer ua ib qho kev daws teeb meem rau kev lag luam tshuaj ntsuam luam ntawv, sib txuas cov kev ua tau zoo, kev ua tau zoo, thiab kev hloov kho kom tau raws li cov kev xav tau ntawm kev lag luam thoob plaws ntau qhov chaw.
Advanced Control System: Koom nrog PLC (Programmable Logic Controller) thiab kov npo vaj huam sib luag rau kev lag luam-qib npo luam ntawv, ua kom muaj kev ua haujlwm zoo thiab ua haujlwm tau zoo.
Micro-Adjusting Meter: Ua kom tsis siv neeg hloov thav duab, tso cai rau kev hloov kho kom zoo, ua kom muaj kev luam ntawv tseeb ntawm ntau qhov chaw.

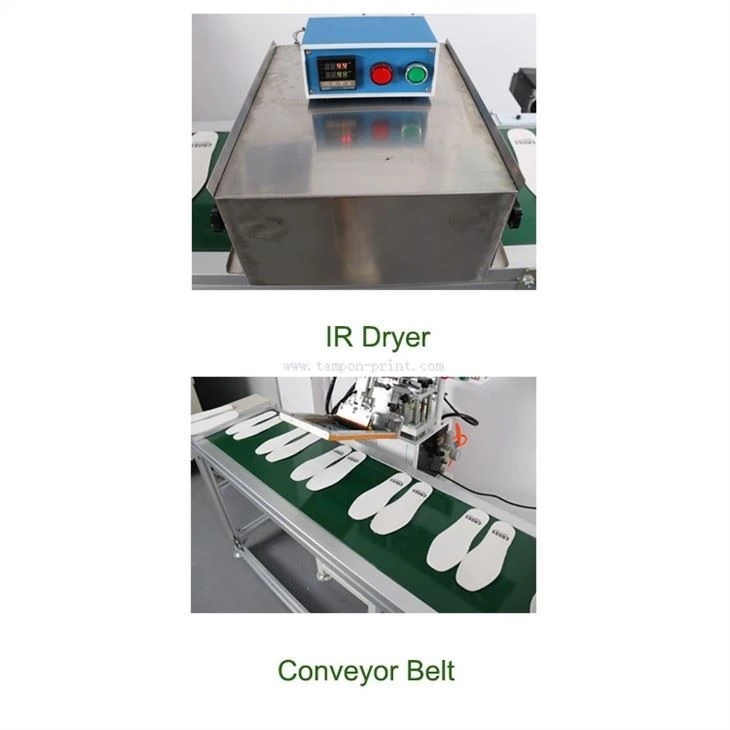

Innovative IR Dryer System: Nruab nrog Infrared (IR) tshuab ziab khaub ncaws kom ceev cov txheej txheem kom qhuav, txhim kho kev ua haujlwm thiab txo lub sijhawm ntau lawm.
Auto Unloading System: Txhim kho kev ua haujlwm nrog lub tshuab tsis siv neeg tshem tawm, ua kom yooj yim hloov pauv ntawm kev luam ntawv mus rau kev tshem tawm kom txhim kho cov khoom lag luam.
Adjustable Conveyor Belt Speed: Muab kev yoog raws los ntawm kev tso cai rau cov tswv lag luam los kho txoj siv conveyor ceev, catering rau cov kev cai luam ntawv sib txawv thiab cov khoom siv tshwj xeeb.
Sturdy thiab Adaptable Design: Lub cev muaj zog tsim kom ruaj khov thiab hloov tau yooj yim. Lub tshuab luam ntawv nta qhov kho tau nce thiab nqis stroke ntawm lub taub hau roj hmab, muab ntau yam hauv kev ua kom haum rau ntau yam kev xav tau luam ntawv.
Scraper Adjustment for Precision: Lub scraper tuaj yeem hloov kho ob qho tib si nce thiab nqis kom tau txais qhov sib npaug ntawm cov roj scraping, tiv thaiv daim ntawv thov tsis sib xws. Qhov no feature tso cai rau rov qab-thiab-tawm scraping los tiv thaiv tus number case los ntawm ziab tawm thaum lub tshuab nres.
Variable Printing Speed: Lub tshuab luam ntawv ceev tuaj yeem hloov kho kom ua tiav cov txiaj ntsig zoo, muab kev tswj hwm cov txheej txheem luam ntawv thiab ua raws li qhov xav tau ntau lawm.
Peb Qhov Kev Pabcuam
Yuav Ua Li Cas Tau Txais Cov Lus Qhia:
Kom tau txais cov lus qhia ntxaws ntxaws, ua siab zoo qhia koj qhov kev nug rau peb, muab cov ntsiab lus tshwj xeeb xws li cov khoom siv, qhov loj, xim, thickness, thiab ntau npaum li cas. Cov ntaub ntawv no yog qhov tseem ceeb rau peb los muab koj tus nqi sib tw tshaj plaws thiab raug nqi rau koj cov kev xav tau tshwj xeeb.
Tshuab Warranty Duration:
Peb sawv tom qab qhov kev ntseeg siab thiab kev ua tau zoo ntawm peb cov khoom los ntawm kev muab 12- lub hlis lav rau lub tshuab. Lub sijhawm lav no ua kom muaj kev thaj yeeb nyab xeeb rau peb cov neeg siv khoom, qhia txog peb txoj kev mob siab rau kev xa cov luam ntawv zoo thiab ruaj khov.
Installation thiab Debugging:
Lub tshuab yog xa tag nrho assembled, streamlining txheej txheem installation rau peb cov neeg muas zaub. Cov txheej txheem kev khiav hauj lwm ncaj qha ua kom yooj yim ntawm kev siv, tso cai rau koj kom ceev nrooj koom ua ke TS-180 rau hauv koj qhov chaw tsim khoom.
Kev pab cuam tom qab muag:
Peb qhov kev cog lus rau cov neeg siv khoom txaus siab txuas ntxiv dhau ntawm 12- lub hlis lav. Peb muab kev pab cuam tom qab muag tas mus li, txhawb peb cov neeg siv khoom tsis muaj qhov xwm txheej txawm tias tom qab lub sijhawm lav. Cov nqi khoom seem kuj tau txais kev txhawb nqa thaum lub sijhawm no, ua kom muaj kev txaus siab txuas ntxiv nrog peb cov khoom.
Kev pab cuam tom qab muag:
Peb qhov kev cog lus rau cov neeg siv khoom txaus siab txuas ntxiv dhau ntawm 12- lub hlis lav. Peb muab kev pab cuam tom qab muag tas mus li, txhawb peb cov neeg siv khoom tsis muaj qhov xwm txheej txawm tias tom qab lub sijhawm lav. Cov nqi khoom seem kuj tau txais kev txhawb nqa thaum lub sijhawm no, ua kom muaj kev txaus siab txuas ntxiv nrog peb cov khoom.
Troubleshooting Ink Flow nyob rau hauv Semi-Automatic Silk Screen Printing Machine
Nyob rau hauv lub realm ntawm semi-automatic txhob lo lo ntxhuav npo luam ntawv tshuab, ntsib inconsistencies nyob rau hauv number case flow yuav yog ib tug vexing kev sib tw uas cuam tshuam qhov precision thiab zoo ntawm cov txheej txheem luam ntawv. Hais txog qhov teeb meem no yuav tsum muaj txoj hauv kev los txheeb xyuas thiab kho cov hauv paus hauv paus.
1. Xyuas Ink Viscosity:
Ink ink flow feem ntau tshwm sim los ntawm kev hloov pauv hauv viscosity. Xyuas kom meej tias tus number case yog sib xyaw kom zoo thiab nws cov viscosity haum raws li cov lus qhia tshwj xeeb pom zoo los ntawm cov chaw tsim khoom. Cov kev hloov pauv yuav xav tau raws li qhov ntsuas kub thiab av noo.
2. Tshawb xyuas Ink Passages:
Clogged los yog thaiv tus number case passages tuaj yeem cuam tshuam qhov ntws ntawm tus number case. Tsis tu ncua tshuaj xyuas thiab ntxuav tus cwj mem txoj hauv kev, suav nrog cov ntxaij vab tshaus, cov squeegees, thiab lwm yam khoom cuam tshuam nrog kev hloov tus cwj mem. Qhov kev xyaum tu xyuas no pab tiv thaiv kev tsim kho uas tuaj yeem cuam tshuam qhov fluidity ntawm tus number case.
3. Ntsuam xyuas Squeegee Condition:
Hnav los yog puas squeegee hniav tuaj yeem ua rau daim ntawv thov tsis sib xws. Lub sijhawm kuaj xyuas thiab hloov cov hniav uas hnav, kom ntseeg tau tias lub squeegee nyob rau hauv qhov zoo. Tsis tas li ntawd, paub meej tias qhov squeegee siab raug kho kom tsim nyog los txhawb kom tus cwj pwm zoo sib xws.
4. Ntsuam xyuas Screen Tension:
Kev tsis sib haum xeeb hauv kev tshuaj ntsuam luam ntawv tuaj yeem ua rau tsis sib xws ntawm tus number case. Tsis tu ncua xyuas thiab kho qhov nro ntawm lub vijtsam kom tswj tau qhov sib xws. Qhov kev ntsuas kev tiv thaiv zoo no pab tiv thaiv kev cuam tshuam rau cov kua nplaum ntws los ntawm kev hloov pauv hauv qhov ntsuas qhov nro.
5. Txheeb xyuas cov substrate Flatness:
Cov substrates tsis sib xws tuaj yeem cuam tshuam rau cov kua dej ntws. Paub meej tias cov substrates yog tiaj tus thiab ruaj ntseg zoo thaum lub sijhawm luam ntawv. Lub tshuab nqus tsev tu kom zoo yog qhov tseem ceeb los xyuas kom meej qhov kev tso kawm ntawm cov substrate zoo ib yam thiab, yog li ntawd, daim ntawv thov tus cwj mem tsis sib xws.
6. Optimize Printing Parameters:
Fine-tune lub luam ntawv tsis, nrog rau ceev, siab, thiab stroke ntev. Kev sim nrog cov chaw sib txawv kom pom qhov sib xyaw ua ke zoo uas txhawb nqa tus cwj pwm tsis tu ncua thiab zoo ib yam. Cov kev hloov kho no yuav txawv nyob ntawm seb cov yam ntxwv tshwj xeeb ntawm tus number case thiab substrates siv.
7. Ua Kev Kho Kom Zoo Dua:
Kev tiv thaiv yog qhov tseem ceeb rau kev txo cov kua dej tsis sib xws. Ua raws li kev saib xyuas tsis tu ncua uas suav nrog kev tu lub tshuab kom huv, lubrication ntawm cov khoom txav, thiab tshuaj xyuas cov khoom tseem ceeb. Qhov kev tiv thaiv kev tiv thaiv no txhim kho kev ua haujlwm tag nrho ntawm semi-automatic silk screen luam ntawv tshuab.
